Product Description

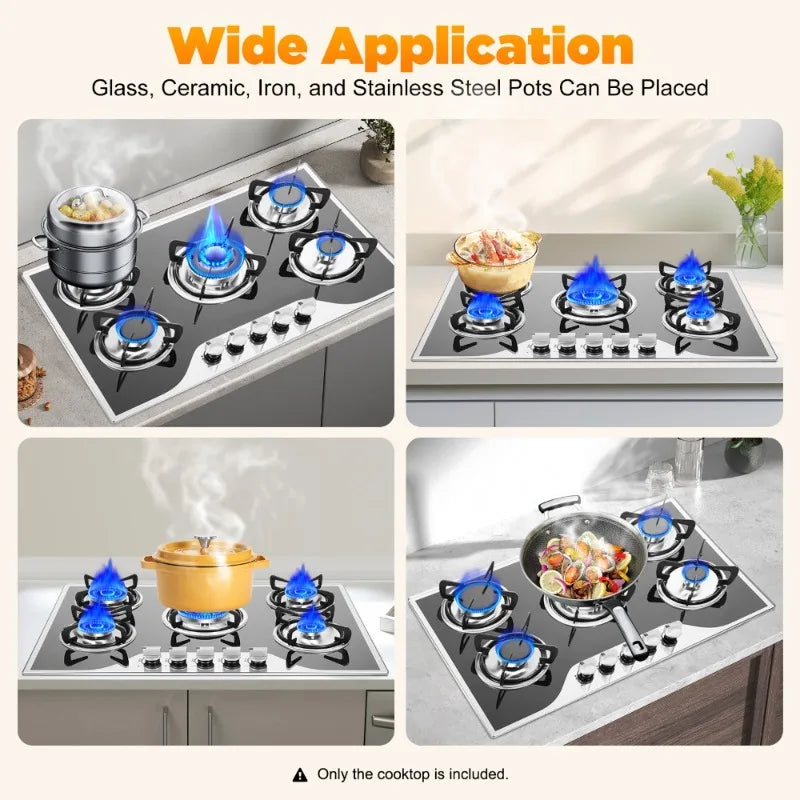

Application

It can handle various high-temperature cookware, including glass, ceramic, iron, and stainless steel pots. It is suitable for domestic or commercial cooking in homes or restaurants.

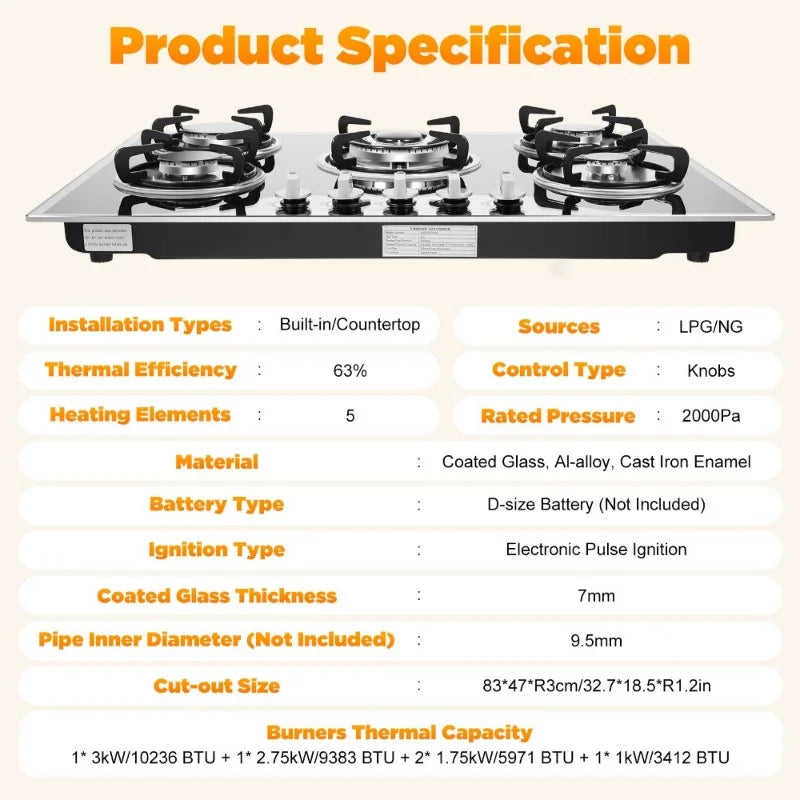

Specification

Material: Coated Glass, Al-alloy, Cast Iron Enamel

Color: Black, Silver

Installation Types: Built-in/Countertop

Gas Sources: LPG/NG

Control Type: Knobs

Ignition Type: Electronic Pulse Ignition

Battery Type: D-size Battery (Not Included)

Heating Elements: 5

Thermal Efficiency: 63%

Rated Gas Pressure: 2000Pa

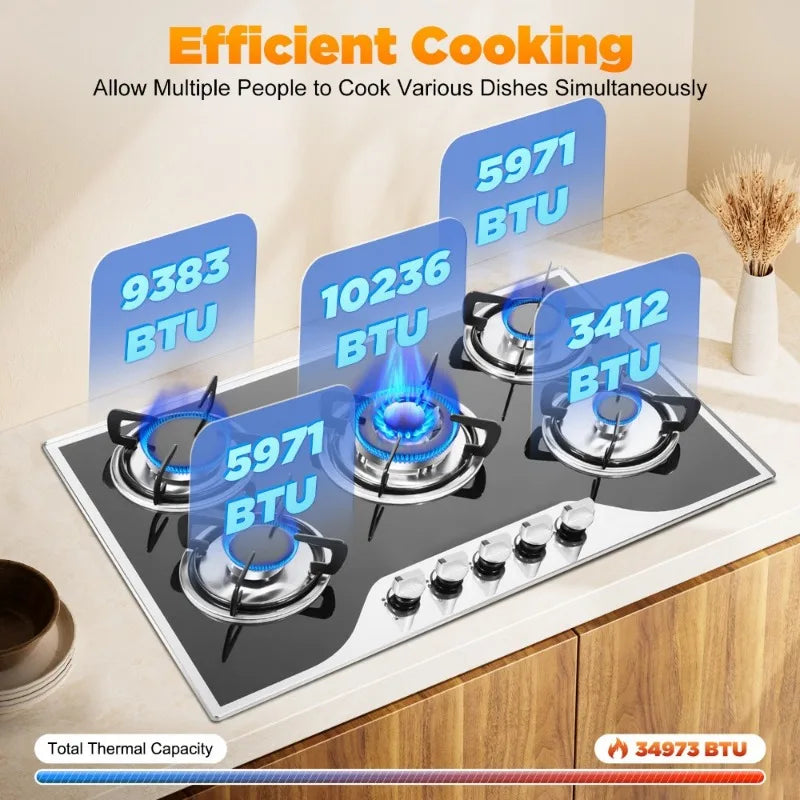

Burners Thermal Capacity: 1* 3kW/10236 BTU + 1* 2.75kW/9383 BTU + 2* 1.75kW/5971 BTU + 1* 1kW/3412 BTU

Gas Pipe (Not Included): 9.5mm (Inner Diameter)

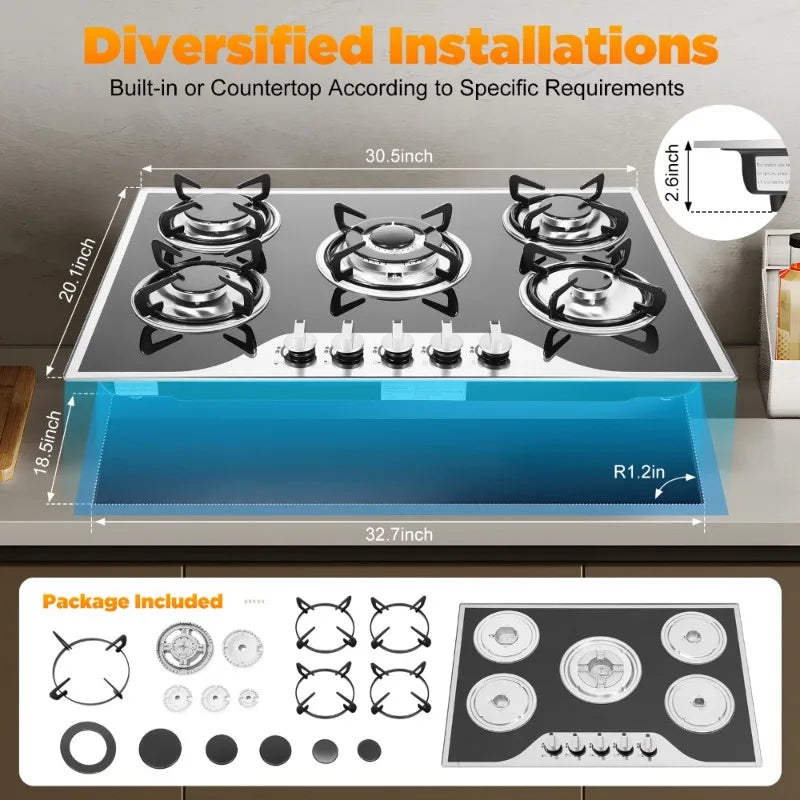

Cut-out Size: 83*47*R3cm/32.7*18.5*R1.2in

Coated Glass Thickness: 7mm

Product Size: 77.5*51*6.5cm/30.5*20.1*2.6in

Package Size: 82*55*19.5cm/32.3*21.7*7.7in

Net Weight: 11.2kg/24.7lbs

Gross Weight: 13.2kg/29.1lbs

Package Included

1* Gas Cooktop with 5 Burners

1* English Manual

Other Accessories for Installation

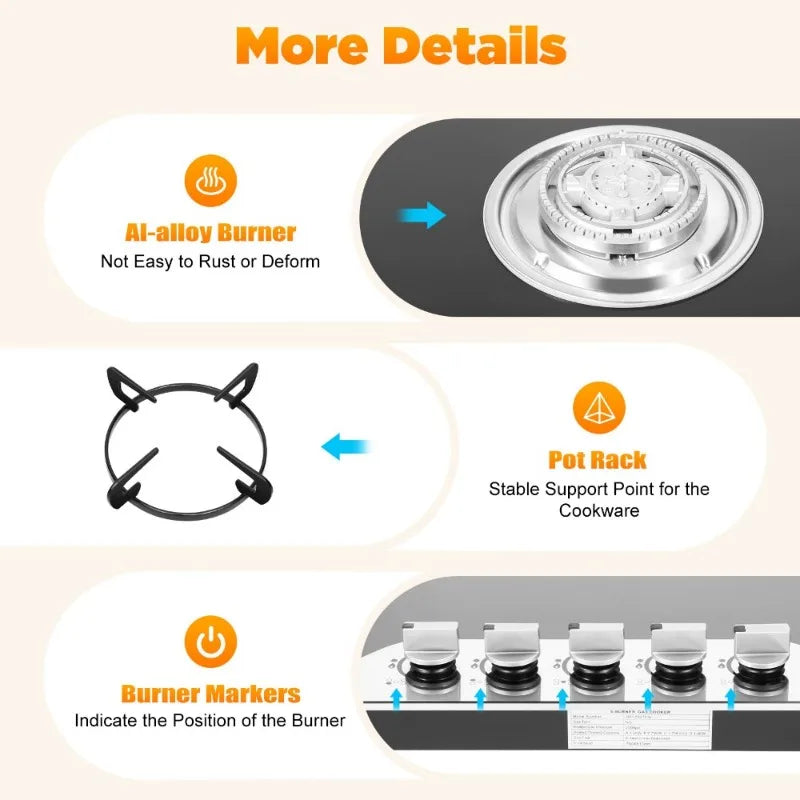

Details

Al-alloy Burner: The burner is made of high-quality Al-alloy, which is not easy to rust or deform, guaranteeing a long service life.

Pot Rack: It provides a stable support point for the placement of cookware, making it difficult for the pot to slide, and it adopts a detachable design for easy cleaning.

Burner Markers: There is a mark next to each knob indicating the position of the burner it controls, so you can quickly distinguish their positions.

Notes

1. Please note that the product is set to use NG at the factory and also equipped with LPG nozzle. If you need to use LPG, please replace the nozzle provided.

2. Please read the manual carefully and pay attention to the safety precautions inside.

3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
